Printed parts for fit checks, practical use and design refinement.

Ryan Dynamics provides 3D printing as a standalone service. It can also form part of CAD, reverse engineering and prototype development.

Work includes functional brackets, adapters, enclosures, replacement parts and suitable small batches.

Discuss a project View capabilities

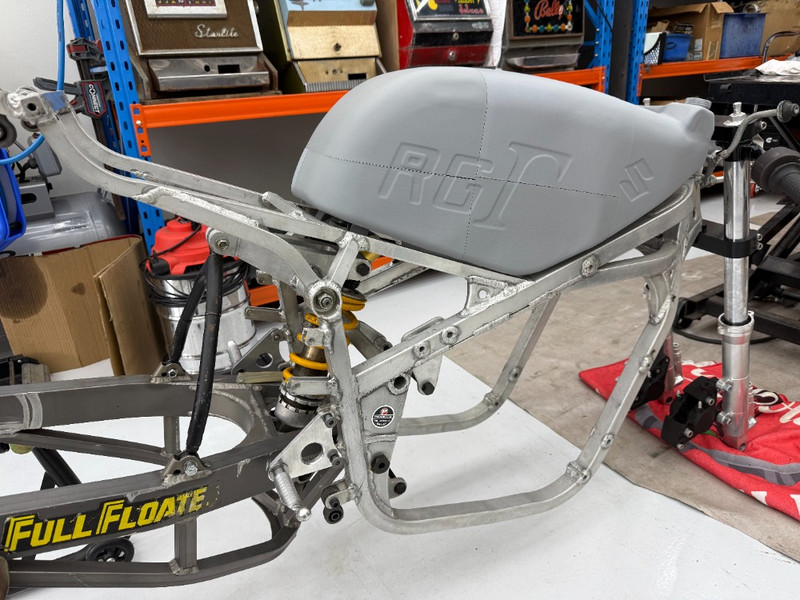

Full-size fuel-tank prototype produced for fitment and fabrication reference.

When 3D printing is suitable

Part suitability depends on geometry, loading, temperature, environment, required life, surface finish and quantity.

• A concept needs a physical prototype for fit or assembly checks.
• A damaged or unavailable plastic component needs reproduction.
• A specialised application needs a bracket, adaptor or enclosure.
• An existing model needs changes for additive manufacture.
• The intended use may suit a small batch of functional parts.

Capabilities

Printing can start from a suitable model. The project can also include the CAD work needed to create one.

• Functional parts and prototypes

  • Fit and assembly prototypes
  • Brackets, adapters, enclosures and replacement parts
  • Reproduction of damaged or unavailable plastic components
  • Small batches where the process is suitable

• Design support

  • CAD modelling when no printable file exists
  • Reverse engineering from a physical part
  • Design changes for additive manufacture
  • Iteration after fit or assembly checks

• Materials and inspection

  • PLA, PETG, ABS, ASA and TPU
  • PA considered after feasibility testing
  • Dimensional inspection against agreed features
  • Material selection based on the intended conditions

Possible deliverables

A project may cover printing only. It can also include modelling, refinement and inspection.

• Printed prototypes, functional parts or suitable small batches
• CAD models created or revised as part of the work
• Agreed STEP, mesh or native files where included in scope
• Dimensional checks on identified critical features
• Revised parts following an agreed fit or assembly review

Maximum single-part build volume is approximately 250 × 250 × 250 mm. The client and Ryan Dynamics agree on the material, orientation, finish and inspection requirements before printing. Ryan Dynamics accepts a printed part only when its geometry and intended conditions suit the process.

Examples and applications

These examples show a design review, replacement of an unavailable component and practical workshop storage. They supplement the fitment prototype above.

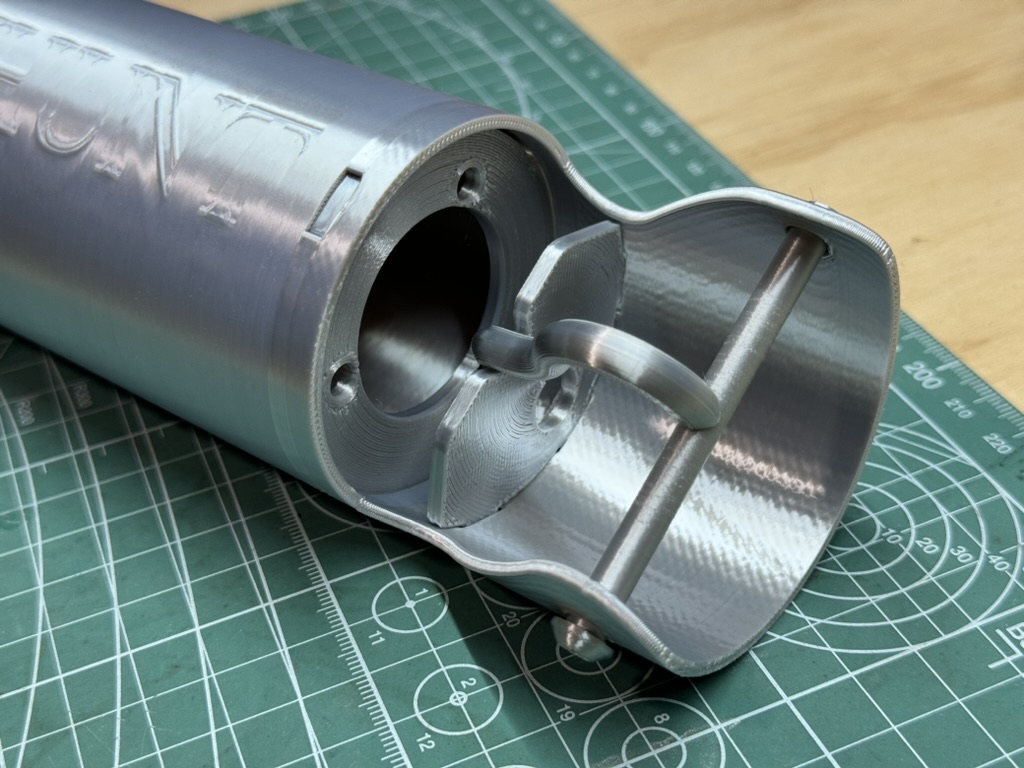

Product prototype produced for design review before manufacture in steel.

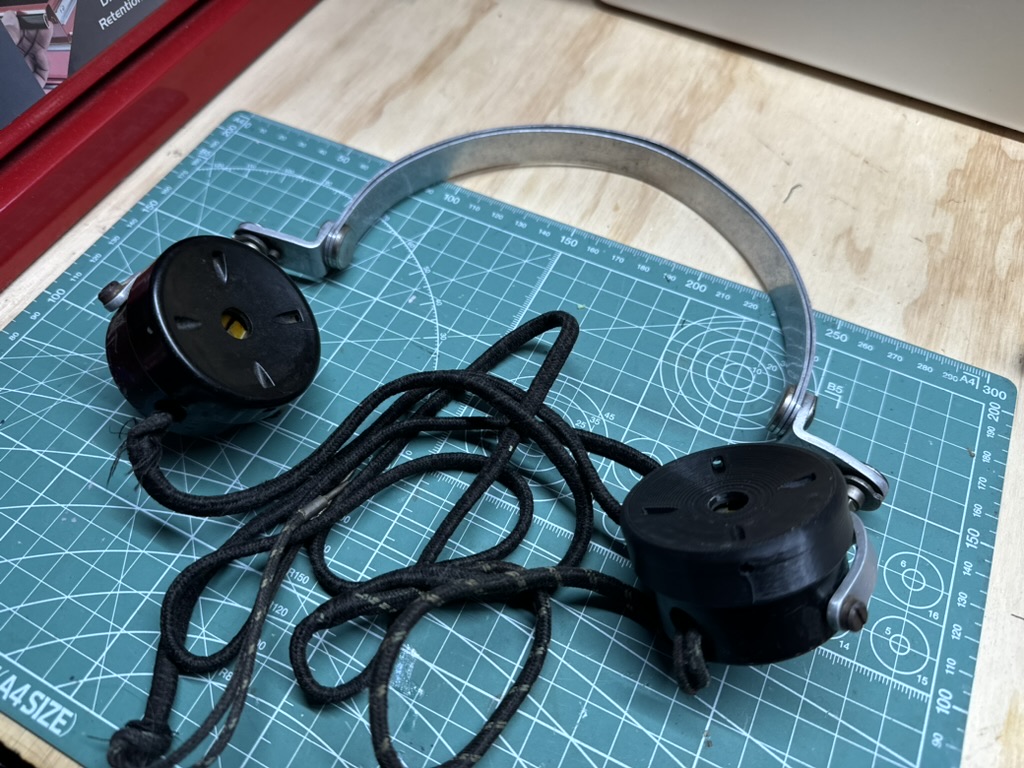

Replacement ear cup reproduced for a Second World War-era RAAF pilot headset.

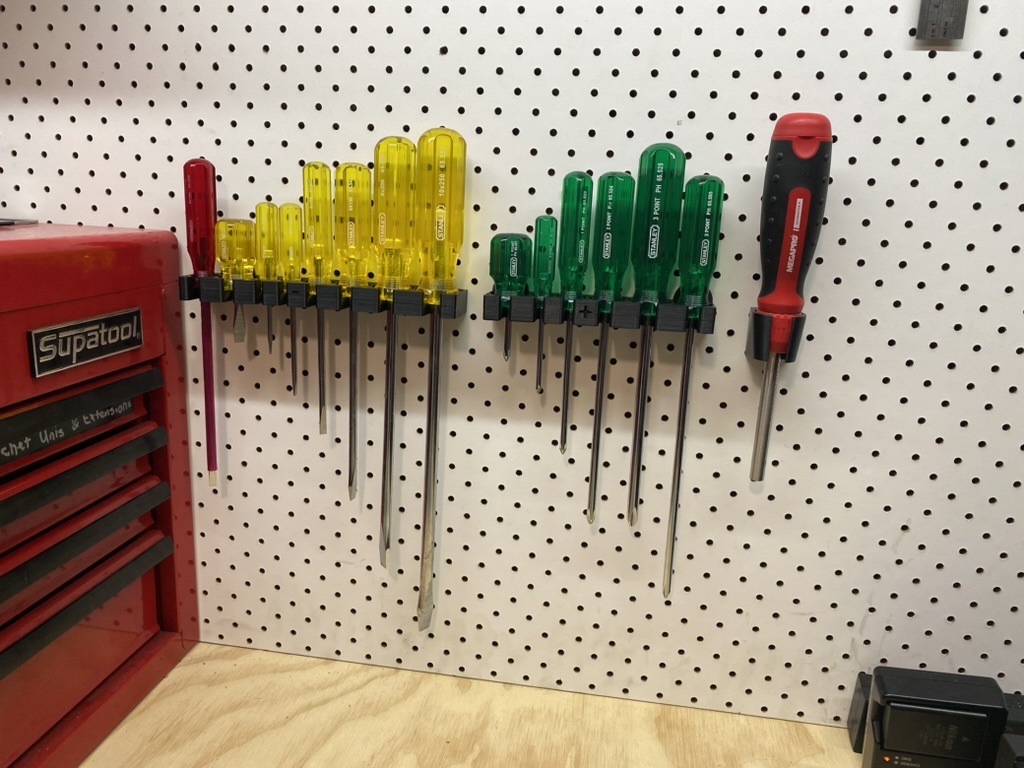

Small-batch printed holders for workshop pegboard storage.
